Hunter EZ Decoder System

$734.82

includes GST

Estimated Delivery:Apr 03 - Apr 07
Free Shipping NZ Wide: On all orders over $100

Ask a question

Share

Hunter EZ Decoder System

Cost and complexity have often limited decoder technology to higher-end systems. However, with the revolutionary EZ Decoder System (EZDS), you get all the advantages of two-wire installations with simpler, more cost-effective technology — so you can bring the power of two-wire control to more projects than ever before.

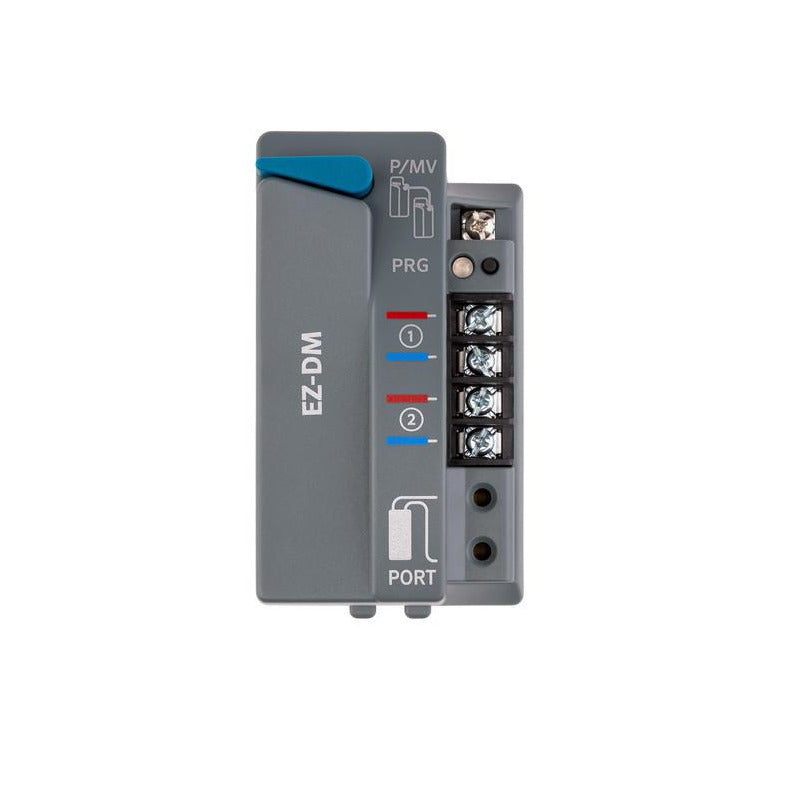

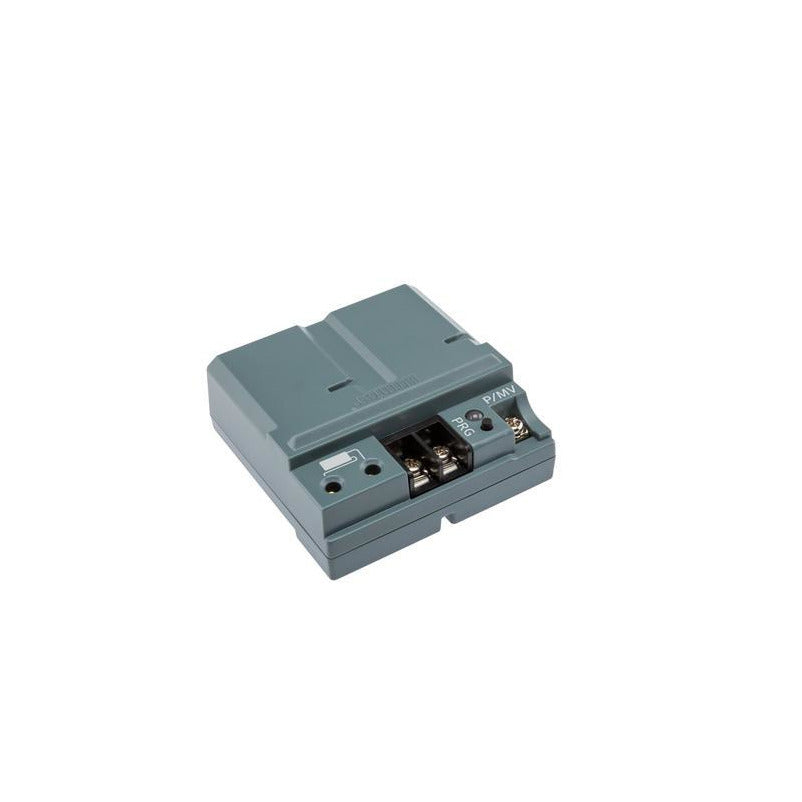

EZDS is compatible with all the features of our Hydrawise-enabled HCC controller, Centralus-enabled ICC2 controller, and reliable Pro-C controller. Plug in either the PC-DM or EZ-DM two-wire output modules to enable up to 28 (Pro-C) or 54 (HCC/ICC2) stations on a single pair of wires. Then simply place EZ Decoders at each valve!

EZ Decoders are small, waterproof, and come with color-coded wiring and a convenient LED status light. They do not require special wire or connectors to function. Better yet, the system can coexist with conventional output modules, allowing hybrid functionality of both direct-wired valves and decoder operations in the same controller. This technology also permits easy conversion of a conventionally wired system to two-wire using the existing wiring bundle. It’s that easy!

KEY BENEFITS

Number of stations:
Pro-C: Up to 28, plus master valve
ICC2/HCC: Up to 54, plus master valve
No special wire or connectors required
No special grounding or surge arrestors required in-line to maximize time and money savings during installation
Programmable decoders with no need to input individual serial numbers
P/MV can activate via the two-wire path for pump stations or distant master valves
Permits hybrid operations of conventional and decoder stations for added flexibility
EZ-1 decoders have built-in status LED for positive diagnostics
EZDT wireless, handheld diagnostic tool for EZ Decoder Systems:
Detect faults and perform electrical troubleshooting in the field without uninstalling decoders
Quickly read decoder status, station address, current draw, and two-wire voltage to simplify maintenance
Program decoder station address via the wired connection to speed up installation and save time on-site
Update controller facepack or decoder module firmware via ribbon cable connection for flexibility when updating systems
Communicate in your preferred language using the multilingual user interface
Work reliably and efficiently on the go with power supplied by 4 AAA batteries

NO SPECIAL WIRE OR CONNECTORS REQUIRED

EZ Decoders are compatible with standard wire and connectors, making it cost-effective and simple to install.

OPERATING SPECIFICATIONS

Electrical output on two-wire path: 24 VAC, 50/60 Hz
Two-wire paths to the field:
- EZ-DM: 2
- PC-DM: 1
Wire paths possible up to 3,000'
Each EZ-1 decoder has the capability to activate two standard 24 VAC solenoids
Approvals: UL, cUL, FCC, CE, RCM, Industry Canada
EZ-1 decoders are IP68 rated, submersible
EZ-DT is IP55 rated
Warranty period: 3 years

USER-INSTALLED OPTIONS

Centralus™ with ICC2
Hydrawise® with HCC
Pro-C™
ICV or PGV valves
Pump start relays (PSR)
DECSTAKE10 Universal Decoder Stake Kit, 10-pack
