The revolutionary MP Rotator features a unique, multi-trajectory rotating stream delivery system that achieves water-conserving results. Rather than simply “spray” water onto landscapes, MP Rotators deliver multiple streams of water at a steady rate. This slower application rate allows water to gently soak into the soil and achieves an even distribution throughout the area being irrigated. This increased efficiency results in 30% less water use when compared to traditional sprays and significantly reduces wasteful runoff. The MP Rotator can be installed onto any conventional spray head body or shrub adapter, transforming them into high uniformity, low precipitation rate sprinklers with matched precipitation at any arc and any radius.
The MP Rotators are a great choice for new systems, as they provide immense range flexibility (from 2.5 m to 10.7 m radius), decrease material costs, and provide better system efficiency. MPs are also perfect for revitalizing older systems—a retrofit can solve both low pressure and poor coverage problems.
-
True matched precipitation any arc or radius setting
-
Radius can be reduced up to 25% on all models
-
Color-coded for easy identification
-
Double-pop feature keeps dirt and debris out of nozzle
-
Removable filter screen prevents large objects from clogging nozzle
-
Low precipitation rate
-
Wind-resistant multi-stream technology
-
Adjustable arc and radius
ADVANCED FEATURES
AUTOMATIC MATCHED PRECIPITATION
The MP Rotator® has the unique ability to control the amount of water flowing through the nozzle at various arc and radius settings, resulting in matched precipitation regardless of the nozzle setting.
DOUBLE-POP
![](https://www.hunterindustries.com/sites/default/files/mpr-cuo-blue-cmyk_200_1.jpg)
The MP Rotator’s nozzle pops up from its protected position only after the riser is fully extended, providing superior defense against dirt and debris.
DISTRIBUTION UNIFORMITY
![](https://www.hunterindustries.com/sites/default/files/mprotator-distribution-uniformity.jpg)
The various streams of the MP Rotator allow it to target all areas of the landscape evenly, yielding superior uniformity over traditional spray nozzles. Each stream targets specific areas to achieve higher efficiency and even coverage.
LOW PRECIPITATION RATE
Since the vast majority of soils have an infiltration rate of less than 25 mm/hr, irrigating at a low precipitation rate is essential to achieve efficiency.
The standard MP Rotator line applies water at 10 mm/hr, while the MP800 Series has a precipitation rate of 20 mm/hr. Either choice will avoid runoff, saving water and preventing erosion.
Operating Specifications
- Recommended operating pressure: 2.8 bar; 280 kPa
Options
Pair with Pro-Spray PRS40 to achieve pressure regulation at the head of 2.8 bar; 280 kPa
Adding “HT” will specify male threaded nozzles
MP ROTATOR PERFORMANCE DATA

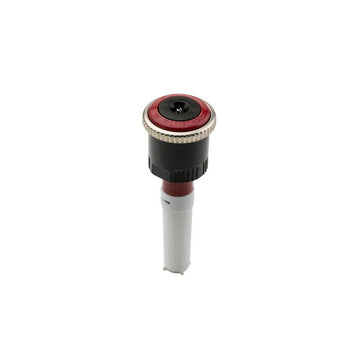

MP1000
- Radius:2.5 to 4.5 m
- Adjustable Arc & Full Circle
- Maroon: 90° to 210°
- Lt. Blue: 210° to 270°
- Olive: 360°
Arc | Pressure | Radius | Flow | Precip mm/hr | |||||
bar | kPa | m | m³/hr | l/min | ![]() |
![]() |
|||
90°
![]() |
1.7 | 170 | - | - | - | - | - | ||
2.0 | 200 | 3.7 | 0.04 | 0.64 | 11 | 13 | |||
2.5 | 250 | 4 | 0.04 | 0.72 | 11 | 13 | |||
2.8 | 280 | 4.1 | 0.05 | 0.8 | 11 | 13 | |||
3.0 | 300 | 4.3 | 0.05 | 0.87 | 11 | 13 | |||
3.5 | 350 | 4.5 | 0.06 | 0.95 | 11 | 13 | |||
3.8 | 380 | 4.5 | 0.06 | 1.02 | 12 | 14 | |||
180°
![]() |
1.7 | 170 | - | - | - | - | - | ||
2.0 | 200 | 3.7 | 0.08 | 1.29 | 11 | 13 | |||
2.5 | 250 | 4 | 0.09 | 1.44 | 11 | 13 | |||
2.8 | 280 | 4.1 | 0.1 | 1.59 | 11 | 13 | |||
3.0 | 300 | 4.3 | 0.1 | 1.67 | 11 | 13 | |||
3.5 | 350 | 4.5 | 0.12 | 1.9 | 11 | 13 | |||
3.8 | 380 | 4.5 | 0.12 | 1.93 | 12 | 13 | |||
210°
![]() |
1.7 | 170 | - | - | - | - | - | ||
2.0 | 200 | 3.7 | 0.09 | 1.52 | 12 | 13 | |||
2.5 | 250 | 4 | 0.1 | 1.71 | 11 | 13 | |||
2.8 | 280 | 4.1 | 0.11 | 1.86 | 11 | 13 | |||
3.0 | 300 | 4.3 | 0.12 | 1.93 | 11 | 13 | |||
3.5 | 350 | 4.5 | 0.13 | 2.16 | 11 | 13 | |||
3.8 | 380 | 4.5 | 0.14 | 2.24 | 11 | 13 | |||
270°
![]() |
1.7 | 170 | - | - | - | - | - | ||
2.0 | 200 | 3.7 | 0.11 | 1.82 | 11 | 12 | |||
2.5 | 250 | 4 | 0.12 | 2.01 | 10 | 12 | |||
2.8 | 280 | 4.1 | 0.14 | 2.39 | 11 | 13 | |||
3.0 | 300 | 4.3 | 0.15 | 2.54 | 11 | 13 | |||
3.5 | 350 | 4.5 | 0.17 | 2.73 | 11 | 13 | |||
3.8 | 380 | 4.5 | 0.17 | 2.84 | 11 | 13 | |||
360°
![]() |
1.7 | 170 | - | - | - | - | - | ||
2.0 | 200 | 3.7 | 0.16 | 2.62 | 12 | 13 | |||
2.5 | 250 | 4 | 0.18 | 2.92 | 11 | 13 | |||
2.8 | 280 | 4.1 | 0.19 | 3.18 | 11 | 13 | |||
3.0 | 300 | 4.3 | 0.2 | 3.34 | 11 | 13 | |||
3.5 | 350 | 4.5 | 0.23 | 3.71 | 11 | 13 | |||
3.8 | 380 | 4.5 | 0.23 | 3.83 | 11 | 13 |
