Hunter Strip Pattern Nozzles

To accommodate the needs of narrow planting areas, Hunter offers a wide variety of highly efficient fixed arc strip nozzles. The Strip Pattern Nozzles are designed to ensure accurate coverage of rectangular areas with models including right and left corner strips, center and end strips, and two options for side strips. Built with the same durable construction and materials as all other Hunter products, Hunter Strip Pattern Nozzles provide a reliable and wind-resistant spray solution for challenging spaces.

KEY BENEFITS

Designed for accurate coverage of strip areas
Available in a variety of models for unique, rectangular spaces
Built to last in harsh conditions

OPERATING SPECIFICATIONS

Recommended operating pressure: 2.1 bar; 210 kPa
Pair with Pro-Spray PRS30 pop-up for pressure regulation to 2.1 bar; 210 kPa
Warranty period: 2 years

Strip Pattern Nozzles Performance Data

Arc	Pressure		Width x Length	Flow
• Nozzle Blue	bar	kPa	m	m³/hr	l/min
LCS-515 Left Corner Strip	1.0	100	1.2 x 4.2	0.10	1.7
	1.5	150	1.2 x 4.3	0.13	2.1
	2.0	200	1.5 x 4.5	0.15	2.4
	2.1	210	1.5 x 4.5	0.15	2.5
	2.5	250	1.5 x 4.5	0.16	2.7
RCS-515 Right Corner Strip	1.0	100	1.2 x 4.2	0.10	1.7
	1.5	150	1.2 x 4.3	0.13	2.1
	2.0	200	1.5 x 4.5	0.15	2.4
	2.1	210	1.5 x 4.5	0.15	2.5
	2.5	250	1.5 x 4.5	0.16	2.7
SS-530 Side Strip	1.0	100	1.2 x 8.5	0.21	3.5
	1.5	150	1.5 x 9.0	0.25	4.2
	2.0	200	1.5 x 9.0	0.29	4.9
	2.1	210	1.5 x 9.0	0.30	5.0
	2.5	250	1.5 x 9.0	0.33	5.5
ES-515 End Strip	1.0	100	1.1 x 4.2	0.10	1.7
	1.5	150	1.2 x 4.3	0.13	2.1
	2.0	200	1.5 x 4.5	0.15	2.4
	2.1	210	1.5 x 4.5	0.15	2.5
	2.5	250	1.5 x 4.5	0.16	2.7
CS-530 Center Strip	1.0	100	1.2 x 8.5	0.21	3.5
	1.5	150	1.5 x 9.0	0.25	4.2
	2.0	200	1.5 x 9.0	0.29	4.9
	2.1	210	1.5 x 9.0	0.30	5.0
	2.5	250	1.5 x 9.0	0.33	5.5

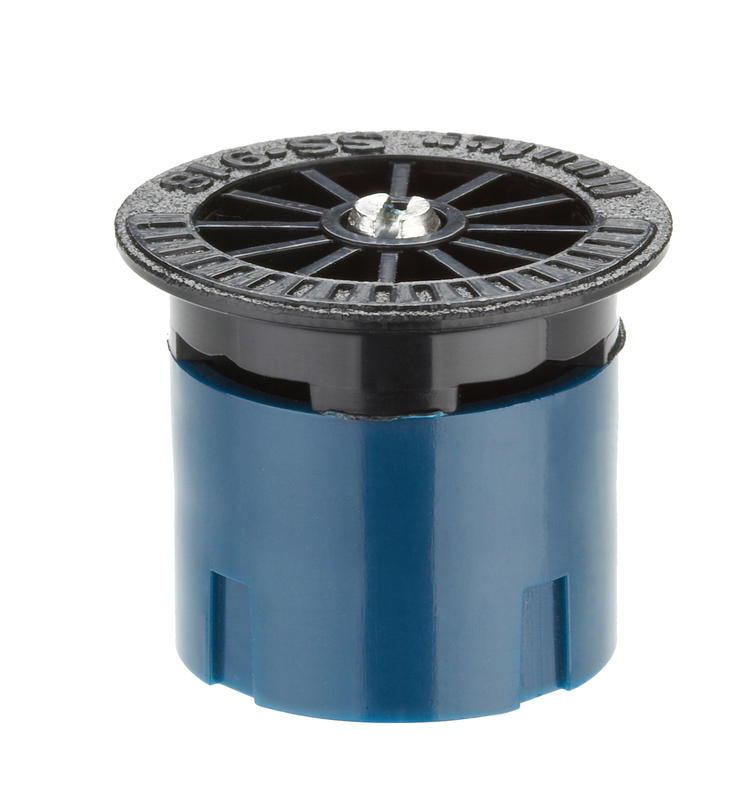

SS-918 Side Strip	1.0	100	2.4 x 5.2	0.27	4.5
	1.5	150	2.7 x 5.5	0.33	5.5
	2.0	200	2.7 x 5.5	0.38	6.4
	2.1	210	2.7 x 5.5	0.39	6.5
	2.5	250	2.7 x 5.5	0.43	7.1
